CP-UNC-TA21PL3C-GP-Y

CP-UNC-TA21PL3C-GP-Y

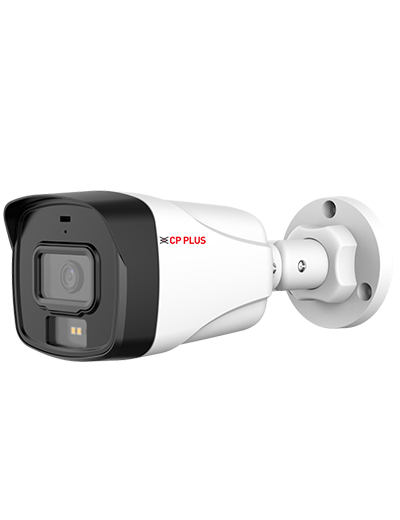

2MP Full-Color Guard+ Network Bullet Camera - 30Mtr.

  • 1/3.2” 2MP PS CMOS Image Sensor (0.7937cm)
  • Max. 2MP(1920 × 1080)@30fps
  • Instastream, H.265 and Smart H.264+ dual-stream encoding
  • DWDR, 3D-DNR, ROI, AWB, AGC, BLC, HLC
  • 3.6mm fixed lens
  • Support Built-in Mic
  • Built-in warm light, Illumination Range of 30 Mtrs, IP67, PoE
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro
Datasheet User Manual
Image Sensor 1/3.2” 2MP PS CMOS Image Sensor (0.7937cm)
Minimum Illumination 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6
Effective Pixels 1920 (H) × 1080 (V)
Shutter Speed Auto/Manual, 1/3~1/100000s
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Lens 3.6mm
Lens Type Fixed-focal
Mount Type M12
Max Aperture F1.6
Iris fixed
Close Focus Distance 0.9m
DORI Distance 51.9m (Detect) 20.8m (Observe) 10.4m (Recognize) 5.2m (Identify)
Gain Control (AGC) Auto
Video Compression H.265/Smart H.264+/H.264/ H.264B/ MJPEG (only supported by the sub stream)
Encode Strategy Instastream
Angle of View H: 87°; V: 47°; D: 102°
Back Light Comp. BLC / HLC / DWDR
S/N Ratio >56dB
Video Streaming Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1– 30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Mirror Support
Motion Detection Off / On (4 area, Rectangle)
Privacy Mask 4 Areas
Day/Night Color
ROI Support (4 areas)
Noise Reduction 3D-NR
Video Bit Rate H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps
Bit Rate Control CBR/VBR
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; Instaon cloud, ONVIF (Profile S; Profile T); CGI
Audio Built-in Mic
Audio Compression G.711a; G.711Mu; G.726; PCM
Image Rotation 0°/180°
Ethernet RJ-45 (10/100Base-T)
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception
Cyber Security Configuration encryption; Trusted execution; Digest; Security logs; HTTPS; Trusted upgrade; WSSE; Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption
Smart Phone iPhone, iPad, Android Phone
User Account 6 Users (Total bandwidth: 24 Mbps)
Illumination Distance Illumination Distance 30 Mtr., Smart Illumination
Illumination Number 2 (Warm Light)
Browser IE, Chrome, Firefox
Edge Storage FTP
Operating Temperature -40°C to +50°C (-40 °F to +122 °F)
Operating Humidity ≤95%
Storage Temperature -40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%
Power Source DC12V, PoE
Power Consumption Basic: 1.2 W (12 VDC); 2.2 W (PoE) Max. (ICR switch+ illuminator intensity): 3.1 W (12 VDC); 4.3 W (PoE)
Weatherproof Standard IP67
Casing Plastic
Dimension 198.9 mm × 80.2 mm × 76.2 mm (7.83
Weight 0.25kg
