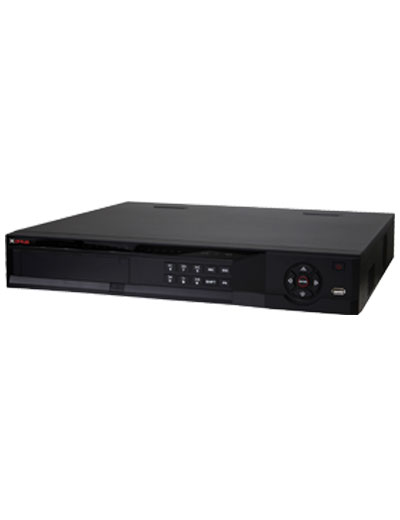

CP-UNR-4K5164-V2

16 Ch. 4K Network Video Recorder

  • Up to 16 channel IP camera input
  • Max 320Mbps incoming bandwidth
  • Instastream/H.265/Smart H.264+/H.264/MJPEG codec decoding
  • Up to 24MP resolution preview and playback
  • Support 4 SATA HDDs up to 10TB Each, 3 USB Port
  • HDMI/ VGA simultaneous video output
  • Support Multi-brand network cameras
  • 1-channel fisheye dewarping (AI by NVR)
  • AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro
Datasheet User Manual
Processor Industrial embedded micro-processor
Operating System Embedded LINUX
User Interface GUI
Video Output 2 HDMI, 2 VGA
Video Resolution HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720; VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720; HDMI2/VGA2: 1920 × 1080; VGA1/HMDI1 homologous output; VGA2/HDMI2 homologous output and VGA1/HDMI1 and VGA2/HDMI2 supports heterogeneous output
Video Recording Max 320Mbps Incoming Bandwidth
Video Display Split 1/4/8/9/16
Channel 16 channel
Motion Detection MD Zones: 396(22×18).
Video Loss supports
Bandwidth Incoming 320Mbps
Alarm Input 16 channels
Alarm Output 6 channels
Smart Phone iPhone, iPad, Android Phone
Hard Disk 4 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Recording Mode Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Playback Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Max User Account 128 users
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
Interface Ports 1 front USB 2.0 port, 2 rear USB 3.0 ports, 1 RS485, 1 RS232
Protocols HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; P2P; ONVIF (profile T/S/G); CGI; SDK
Power Supply Single, 100V–240V AC, 50 Hz–60 Hz
Power Consumption < 16.7W (without HDD)
Working Temp -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension 440 mm × 412.2 mm × 76.0 mm
Weight 4.3kg (without HDD)
