CP-USC-TA24ZL6-2.4MP Full HD IR Cosmic Bullet Camera - 60Mtr. | Cp Plus | Cpplusworld.com

CP-USC-TA24ZL6

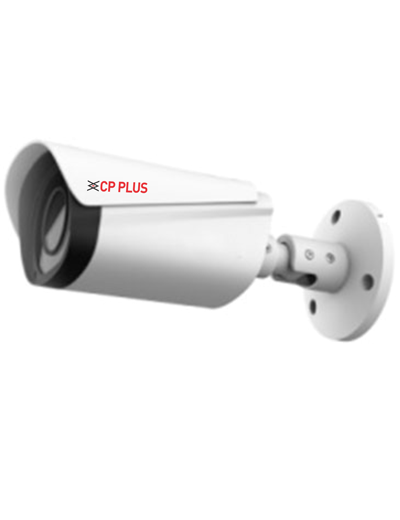

2.4MP Full HD IR Cosmic Bullet Camera - 60Mtr.

  • 1/2.7" 2.4MP PS CMOS Image Sensor (6.858 centimeters)
  • Max 25/30fps@2.4MP
  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 2.7-12mm Motorized lens
  • IR Range of 60Mtrs., Smart IR, IP67
  • OSD Menu, control over coaxial cable, 2D-DNR
  • HD, SD, and Two Others Analog formats output switchable
Download Datasheet
Image Sensor 1/2.7" 2.4MP PS CMOS Image Sensor (6.858 centimeters)
Minimum Illumination 0.02Lux/F1.8, 30IRE, 0Lux IR on
Effective Pixels 2.4 MP
BodyType Bullet
Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
White Balance Auto / Manual
Lens 2.7-12mm Motorized lens
Gain Control (AGC) Auto / Manual
Angle of View H: 106°~ 33°
S/N Ratio More than 65dB
Back Light Comp. BLC / HLC / DWDR
Video Streaming 25/30fps@2.4MP, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
ICR Auto (ICR) / Manual
OSD Multi-language
IR Range 60 Mtr.
Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Source 12V DC ±30%
Power Consumption Max 12.1W (12V DC, IR on)
Weatherproof Standard IP67
Dimension 213.0mm×90.4mm×90.4mm
Weight 0.55kg
