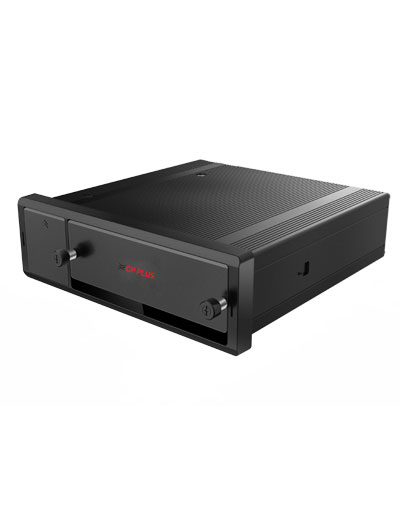

CP-UVR-0401F1-PGI

CP-UVR-0401F1-PGI

4 Ch. H.265 AI Mobile Video Recorder

  • Supports 4-ch 2MP analog cameras and 4-ch 2MP IP cameras input
  • Support Instastream/ H.265 video compression
  • Aviation connectors adopted
  • Support 1 HDD and 1 SD card, 3 USB Ports (2.0)
  • Supports DSM/ADAS/BSD
  • Support GPS and 3G/4G
  • Support Penta-Brid (HDCVI/AHD/TVI/CVBS/IP) video input
  • VGA/TV simultaneous video output
  • Mobile Software: EMSS Pro, iCMOB/gCMOB (Live view and Playback)
  • CMS Software: EMSS Pro, KVMS Pro (Live view and Playback)
Datasheet User Manual
Processor High-performance industrial embedded micro-controller
Frame Rate PAL: 1-25fps, NTSC: 1-30fps
IP Camera Input 4 IP cameras, up to 1080P resolution (extendable via PoE switch)
Video Compression H.265, H.264
Two-way Talk Supported
Encode Strategy Instastream
Video Resolution VGA: 800×600, Web: 1280×1024
OSD Channel, time, GPS position, license plate
Video Display Split 1/4/8/9
Audio Compression G.711A/G.711U/PCM
Audio Input 4 (with Built-in Mic camera)
Video Output AV OUT x 1, VGA x 1
Audio Output 1 aviation port for audio output, 1 audio talk output
Alarm IN 8 channels for alarm input, 1 channel for pulse speed measuring
Dual-Stream Supported (up to D1 encoding for sub stream)
Alarm Out 1 channel of controllable 12V alarm output, digital quantity
Playback 1, 4
Hard Disk 1, 2.5-inch HDDs (SATA) up to 2TB
Image Quality Adjustment Image quality adjustable across six levels
Backup Mode HDD, USB flash drive and network backup
Recording Mode Auto, Manual, motion detection, schedule, alarm Record alarm > alarm > motion detection > schedule
GPS Support
Alarm Linkage Record, snapshot, local external alarm output, buzzer, log, screen prompt, tour
3G/4G Support
Interface Ports Front panel: 2 × USB 2.0 Rear panel: 1 × USB 2.0 from EXTEND port, 2 Port RS232, 1 Port RS485, 1 TV Output, 1 Pulse Count
BSD Blind Spot Detection
DSM Supports detection of drowsy driving, distracted driving, calling while driving, no driver, wearing IR blocking sunglasses, smoking when driving and lens tampering
General Alarm Motion detection, video tampering and loss, local alarm, camera offline, manual alarm control, DSM, ADAS and BSD alarm
Abnormal Alarm No HDD, HDD error, insufficient capacity, illegal login, ACC off, high temperature, rollover, battery low voltage, over speed, low speed, collision, tapid turn, rapid speedup, hard braking, low battery safety exception, network security exception
Memory 1 SD card, Up to 256GB
ADAS Alerts for forward collision, lane departure and vehicles distance too close
Gyroscope Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn
Ethernet Front panel: 1 × 10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector
Operating Temperature -30 °C to +70°C (–22 °F to +158 °F)
Dimension 1 DIN Front panel: 190 mm × 60 mm (7.5’×2.4’) Rear panel: 180 mm × 50 mm (7.1’×2.0’)
Power Source DC 6-36V with the built-in UPS (Enables system protection in normal power cut-off and in Under voltage of vehicle battery.)
Power Consumption 8.4W (without peripheral) Low power consumption: < 0.1W
Weight 2.83Kg (with packages)
