CP-ECC-70R

CP-ECC-70R

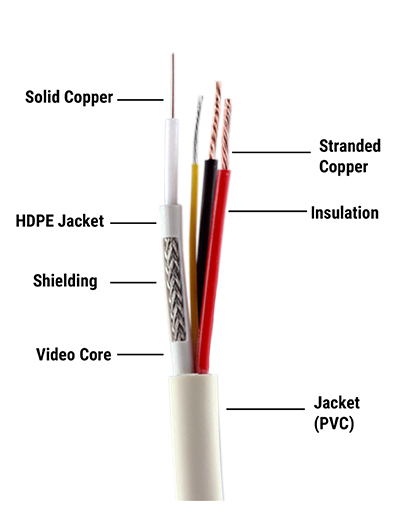

3+1 CCTV Cable (Eco Cable)

  • Solid Annealed Bare Copper Conductor
  • High performance 3+1 Cable
  • LLDPE Insulation Material
  • 70 Mtr. Standard Cable Length
  • For Video, Power and Audio Communication
  • For India Market Only
Datasheet
Material Stranded Annealed Bare Copper Conductor
Insulation Dia (Nominal) Video Core 1.5mm
Wire Dia .50 ± .02mm
Approx Overall Diameter 5.5mm
No. of Strands (Power Core) 14
No. of Strands 36 (Video Core)
Insulation Thickness 1.3 ± .05mm (Sheath)
Shape of Conductor (Power Core) Stranded
Shape of Conductor (Video Core) Solid
Braiding Material AL Alloy (Video Core)
Insulation PVC (Power Core)
Cable Length 70 Mtrs.
